Entity

An entity can be a real-world object, either animate or inanimate, that can be easily identifiable. For example, in a school database, students, teachers, classes, and courses offered can be considered as entities. All these entities have some attributes or properties that give them their identity.

An entity set is a collection of similar types of entities. An entity set may contain entities with attribute sharing similar values. For example, a Students set may contain all the students of a school; likewise a Teachers set may contain all the teachers of a school from all faculties. Entity sets need not be disjoint.

Attributes

Entities are represented by means of their properties, called attributes. All attributes have values. For example, a student entity may have name, class, and age as attributes.

There exists a domain or range of values that can be assigned to attributes. For example, a student’s name cannot be a numeric value. It has to be alphabetic. A student’s age cannot be negative, etc.

Types of Attributes

These attribute types can come together in a way like −

• simple single-valued attributes
• simple multi-valued attributes
• composite single-valued attributes
• composite multi-valued attributes

Entity-Set and Keys

Key is an attribute or collection of attributes that uniquely identifies an entity among entity set.

For example, the roll_number of a student makes him/her identifiable among students.

• Super Key − A set of attributes (one or more) that collectively identifies an entity in an entity set.
• Candidate Key − A minimal super key is called a candidate key. An entity set may have more than one candidate key.
• Primary Key − A primary key is one of the candidate keys chosen by the database designer to uniquely identify the entity set.

Relationship

The association among entities is called a relationship. For example, an employee works_at a department, a student enrolls in a course. Here, Works_at and Enrolls are called relationships.

Degree of Relationship

The number of participating entities in a relationship defines the degree of the relationship.

• Binary = degree 2
• Ternary = degree 3
• n-ary = degree

Mapping Cardinalities

Cardinality defines the number of entities in one entity set, which can be associated with the number of entities of other set via relationship set.

• One-to-one − One entity from entity set A can be associated with at most one entity of entity set B and vice versa.

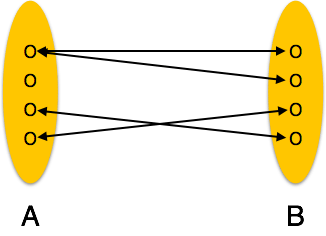

One-to-many − One entity from entity set A can be associated with more than one entities of entity set B however an entity from entity set B, can be associated with at most one entity.

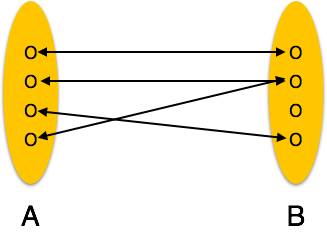

Many-to-one − More than one entities from entity set A can be associated with at most one entity of entity set B, however an entity from entity set B can be associated with more than one entity from entity set A.

Many-to-many − One entity from A can be associated with more than one entity from B and vice versa.
